Type Of Service

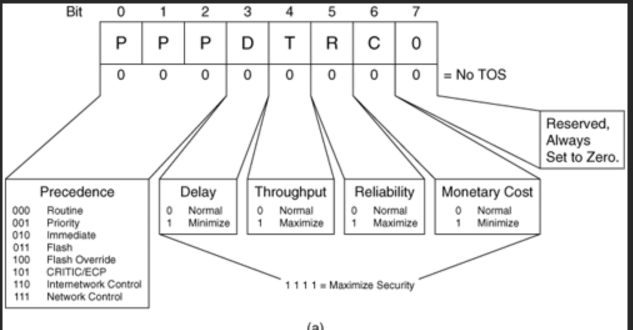

Type of Service includes Precedence (3 number), Delay, Throughput, Reliability and Monetary Cost

Some of the common one:

• 0x00: best effort — normal routing
• 0xAF: goes to priority queue
• 0xEF: reserved bandwidth (guarantee packet will arrive using reserved bandwidth)
